Features

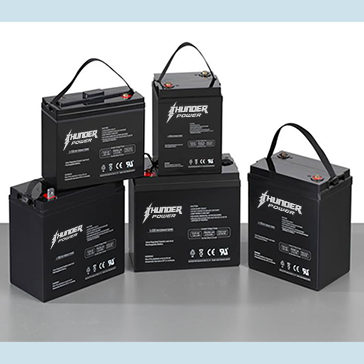

THUNDER POWER TP Series Valve Regulated Lead Acid batteries:

1. Voltage : 6V, 12V
2. Capacity: From 7.2Ah to 250Ah
3. Service life: 22Ah and below: 4～6 years; 24Ah and up: 6～8
>>>>>Advanced Feature
• Special lead calcium alloy, good corrosion resistance and high recovery capacity.
•Sealed and maintenance free, no need to add water
• Non-Spillable construction design
• Safety valve installation for explosion proof.
• Low Self Discharge, the self discharge rate is below 3% per month
•Flexibility design for multiple install positions
•The operating ambient temperature -40℃ to +65℃
•Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging
•High quality AGM separator: extend cycle life and prevents micro short circuit
•ABS material: increases the strength of battery container. (Flame-retardant ABS is optional)
•High purity raw material: ensures low self discharge rate

•Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity

Application

• Fire & security systems;
• Emergency power System
• Engine starting, Communication equipment;
• Cable equipment
• Uninterruptible power supplies;
• Telecommunication systems;
• Electronic cash registers;
• Electronic test equipment;
• processor based office machines;
• Control system;
• Electric powered bicycle & wheelchairs;
• Geophysical equipment;
• Marine equipment;
• Medical equipment;
• Portable cine & video lights;
• Solar powered systems;
• Television& video recorders;
• Vending machines;
• Alarm Systems, Computers;
• Power Tools;
• Emergency Lighting Systems;
• Toys;
• Geophysical Equipment;
• Vending Machines ;
• Other standby or primary power supplies

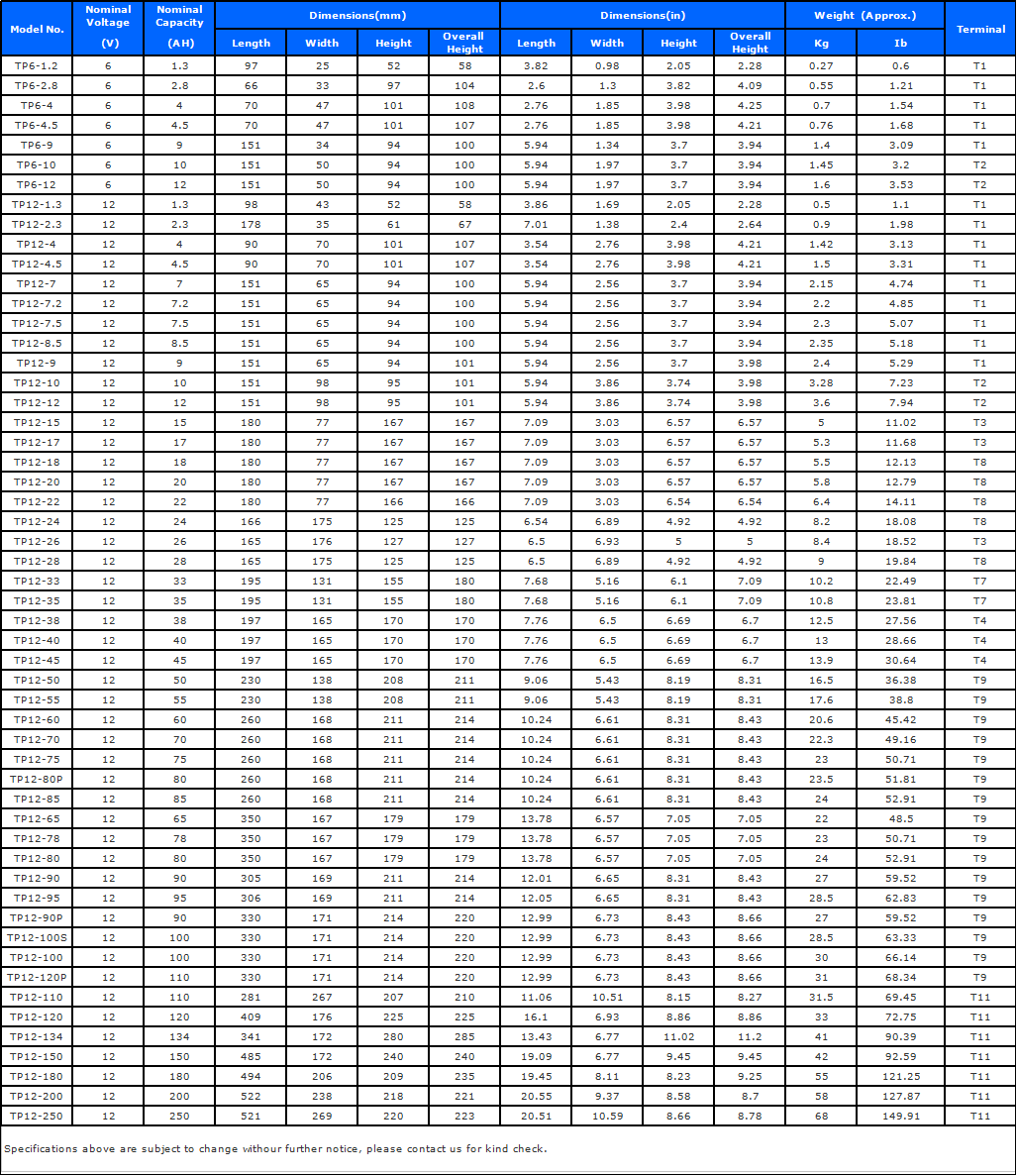

Technical Specification

Terminal&Layout
