Features

THUNDER POWER TF (Front Terminal) Series is especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and Front Access connection for fast & easy installation and maintenance and highly suited for telecom applications, UPS systems and other back up applications.
Battery Type : Front Terminal Series
Design cycle life : 700cycles
Volate: 12V
Capacity: 55-200ah
Applications: telecommunication ,UPS, Solar power
>>>>>Advanced Features
• 12 years design life at floating condition
• Wide operating temperature range from -15°C to 55°C
• Advanced paste formula with increased recharge efficiency
• Front access terminal with standard width for 19” and 23” ETSI racks
• 30% decreased float current lead to excellent high temperature resistance
• Thick flat plate with high Tin low Calcium alloy
• Low self-discharge rate
• Excellent deep discharge recovery capability
-Low self-discharge rate
-Excellent deep discharge recovery capability

Application

• 19" and 23" standard power cabinet
• communication system, microwave station, mobile base station, data center, radio / broadcasting station
• Power system of special network or local area network
• Emergency lighting and signal system
• UPS, Standby power, etc

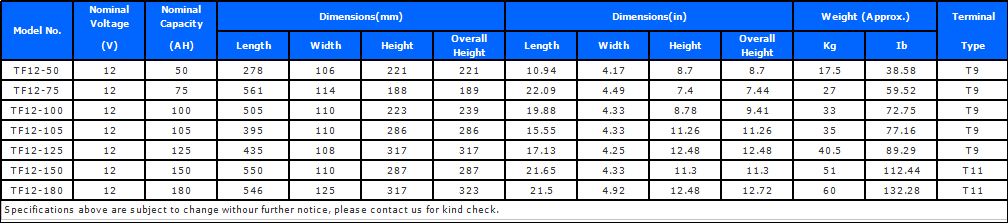

Technical Specification

Terminal&Layout
